SPECIFICATIONS

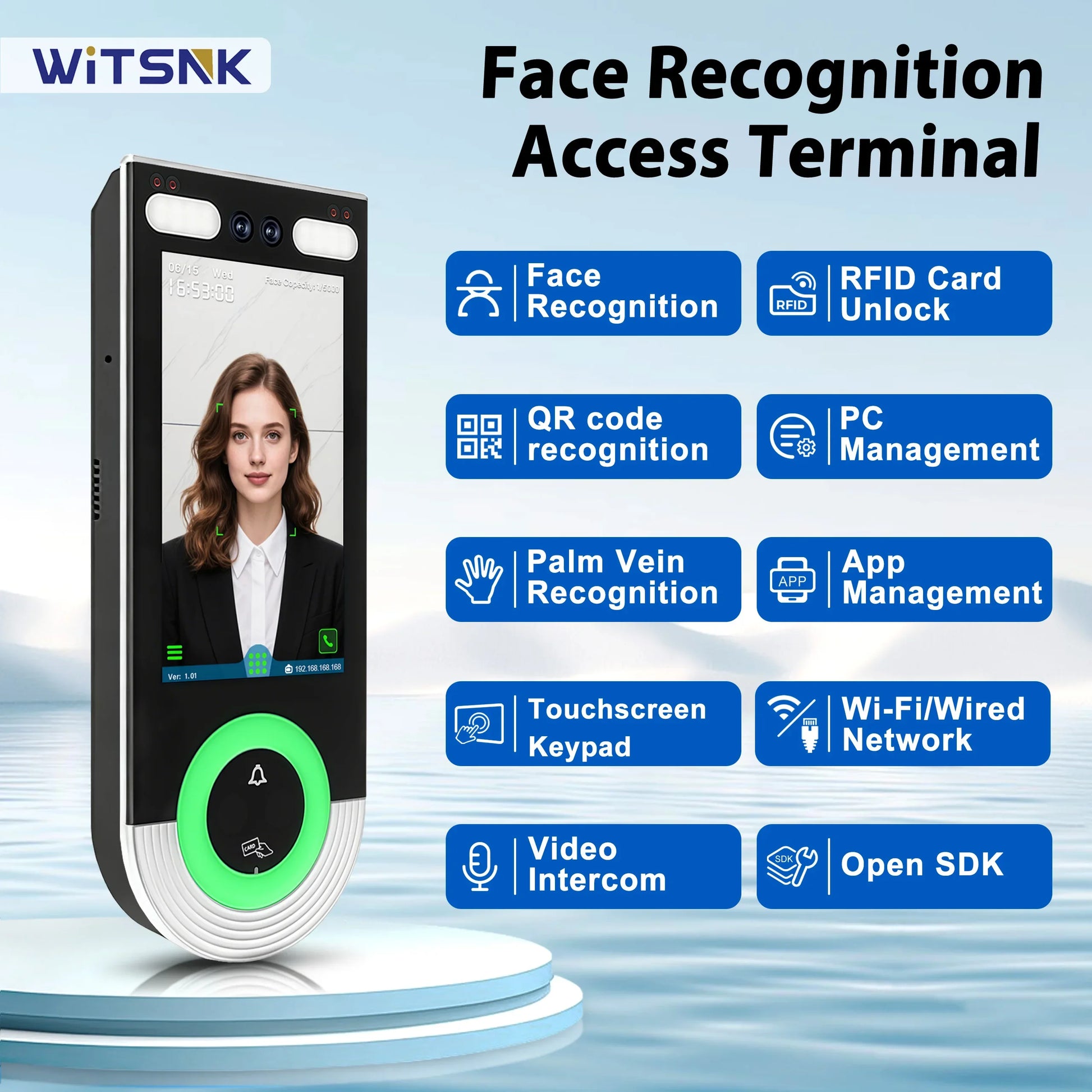

Algorithm: Facial Recognition, Palm Vein Recognition, QR Code Recognition
Biometric Recognition: Vein Recognition,Face Recognition,Other
Brand Name: WITSNK

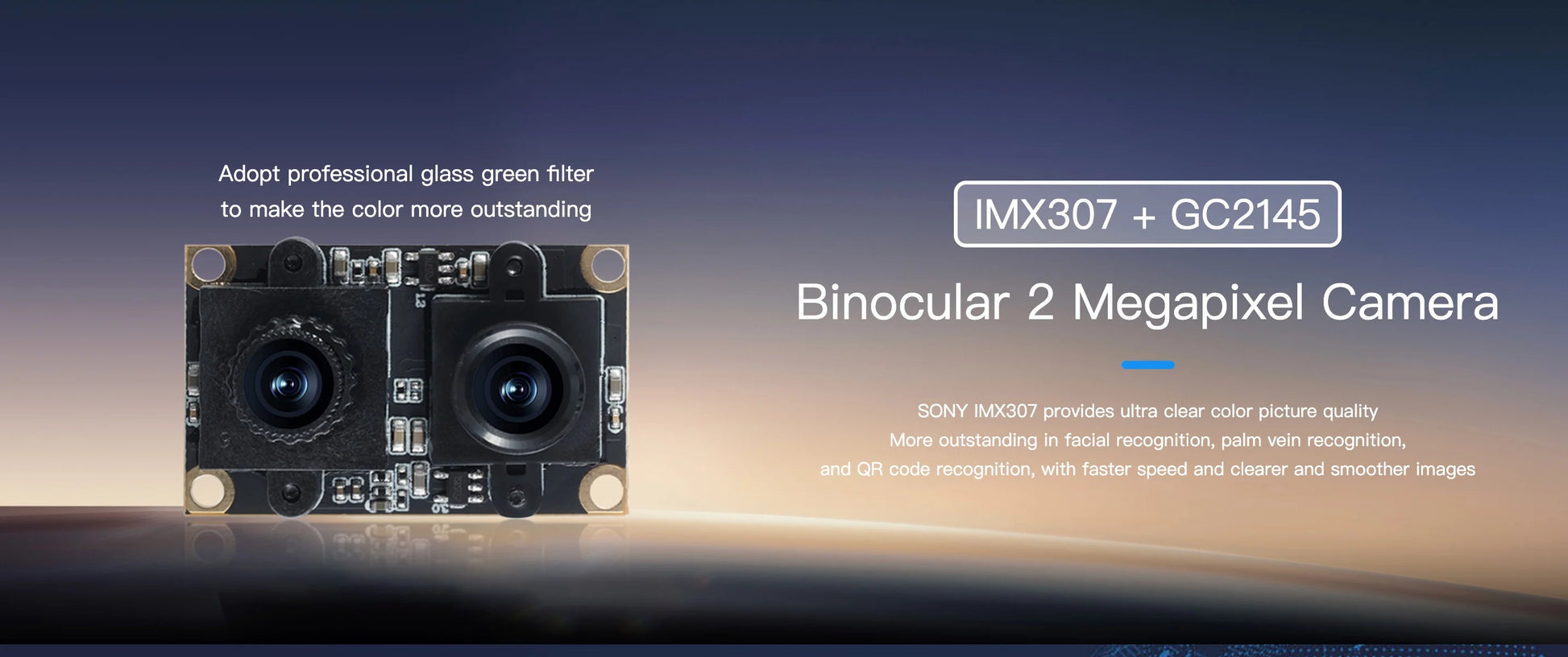

Camera: Wide Dynamic Binocular 2 megapixel HD camera
Card Capacity: 5000
Communication: TCP/IP and WIFI
Comparison: 1:N/1:1
Dimensions: Other

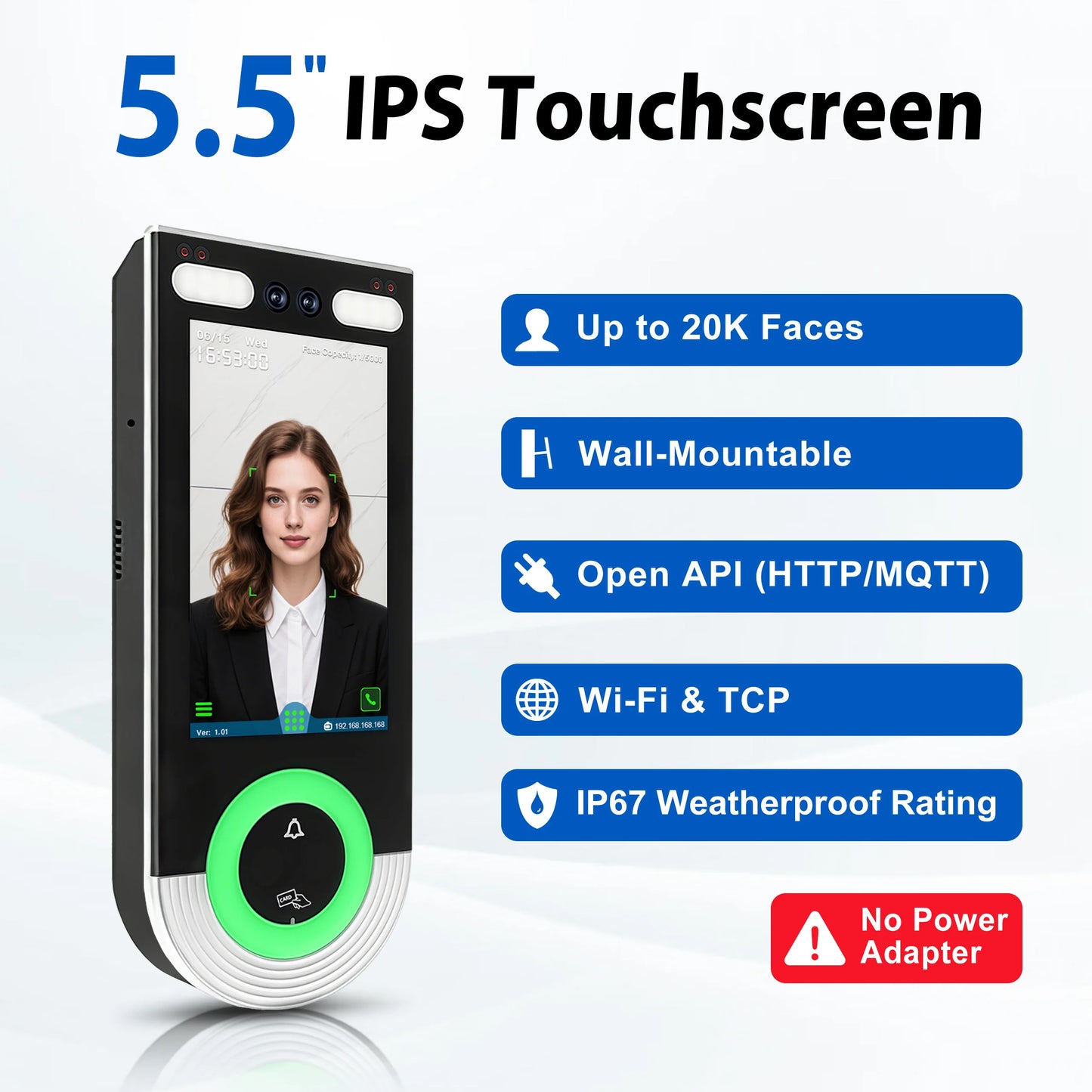

Display Screen: 5.5-Inch IPS Full View HD Screen
Elevator Extension: Support extension interface for elevator/cabinet lock control
Face Capacity: None
Fingerprint Capacity: None
Firmware Upgrade: Support upgraded by OTA or USB pendrive
High-concerned chemical: None
Identification Speed: <0.3S

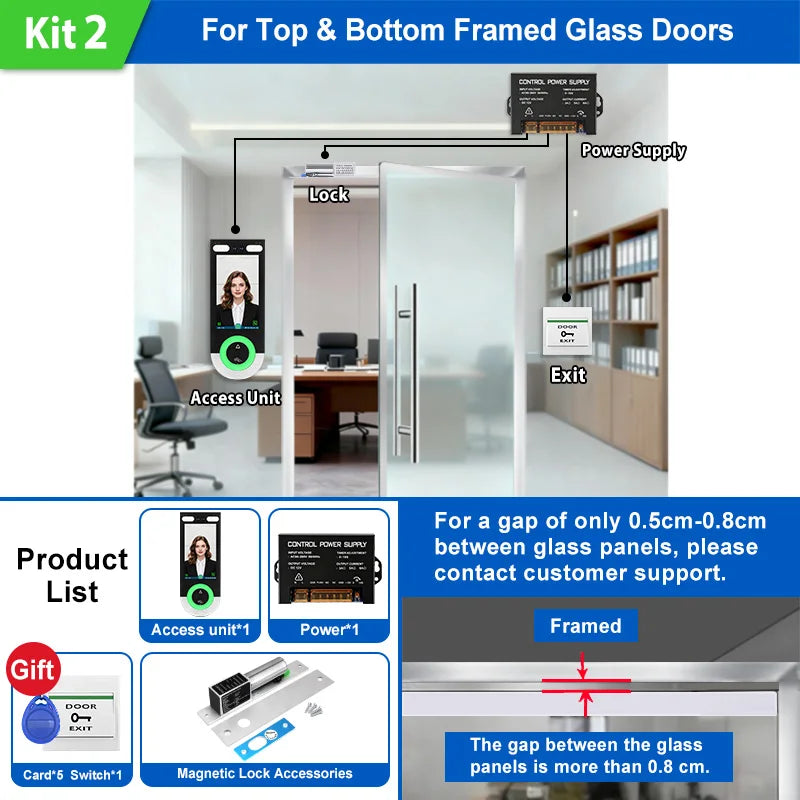

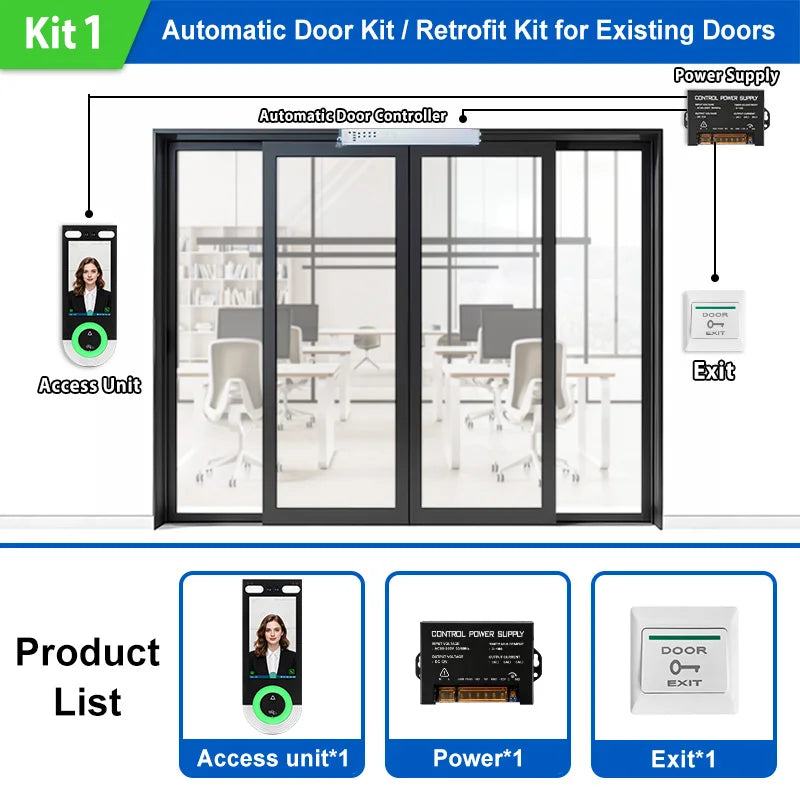

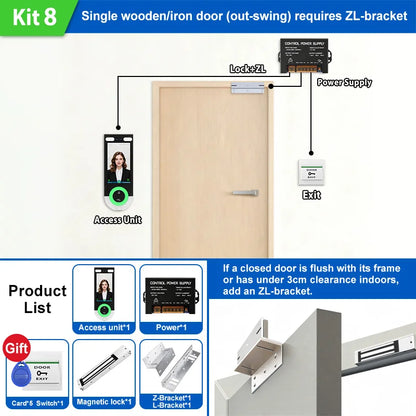

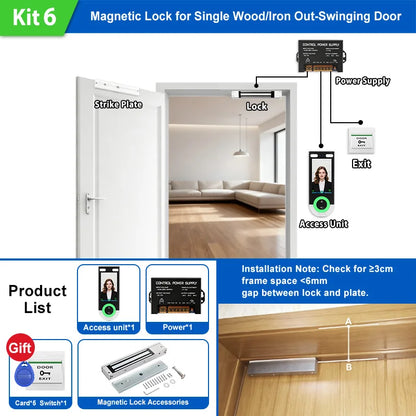

Installation Way: Installed on wall or turnstile
Interface: Network Interface,Lock Control,Exit Button,Door Contact Input,Alarm Input,Alarm Output,RS-485,Wiegand,USB
Interface Protocol: Wiegand26/34/66
Logs Capacity: Other

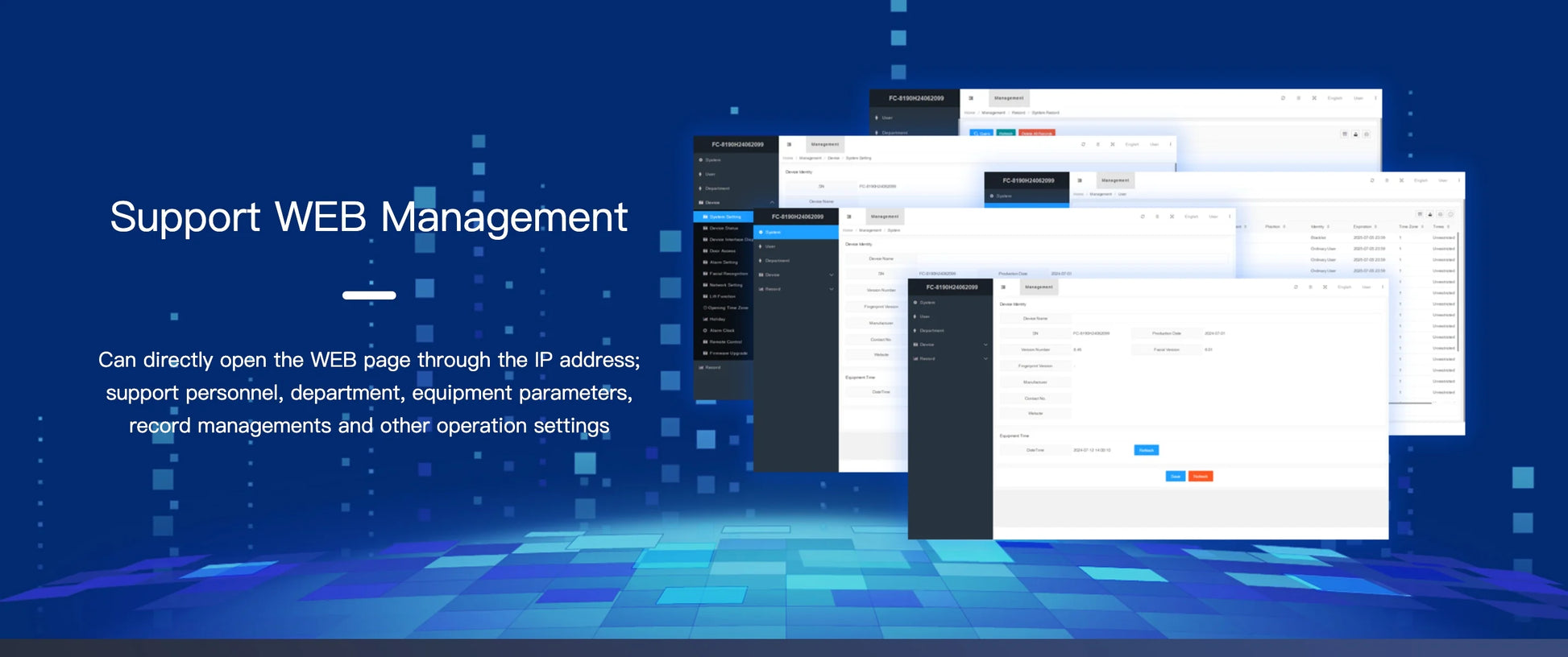

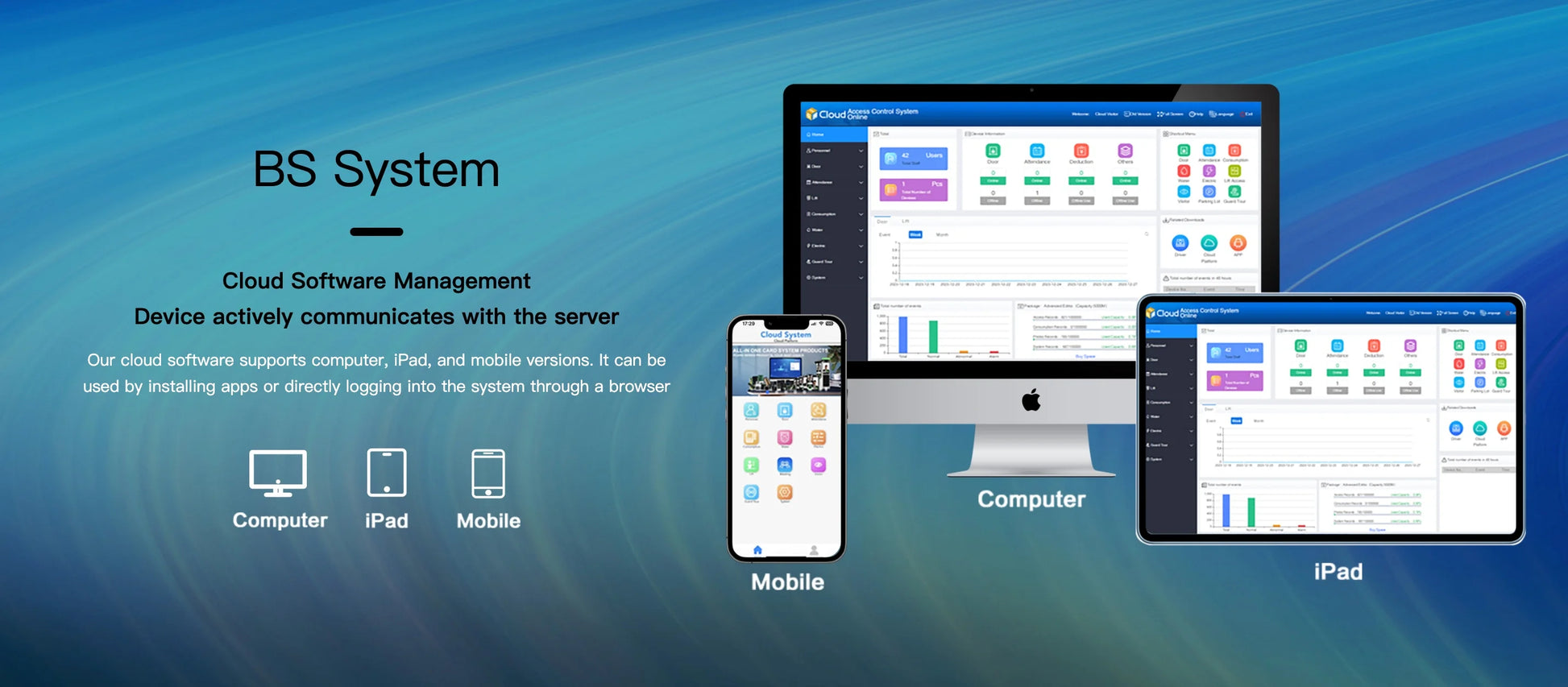

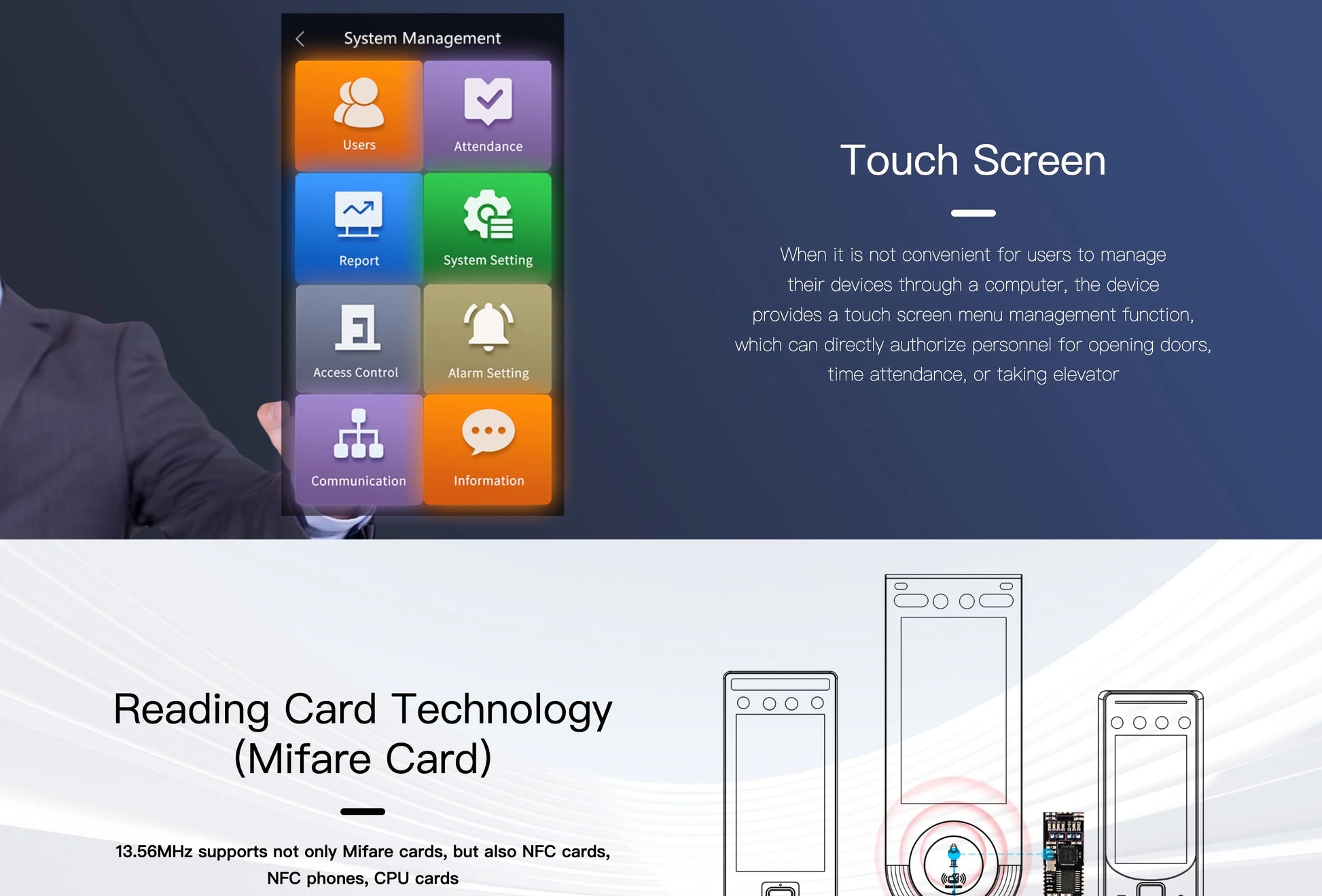

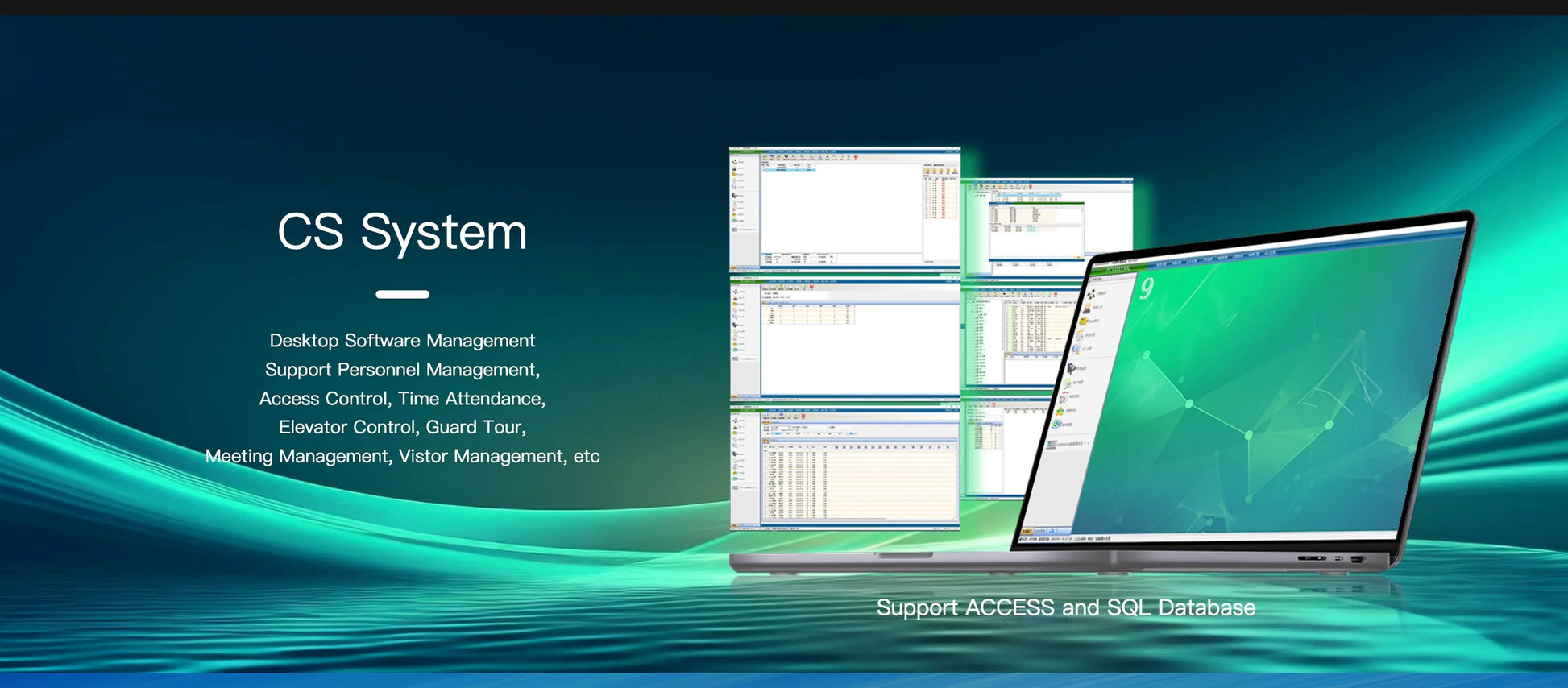

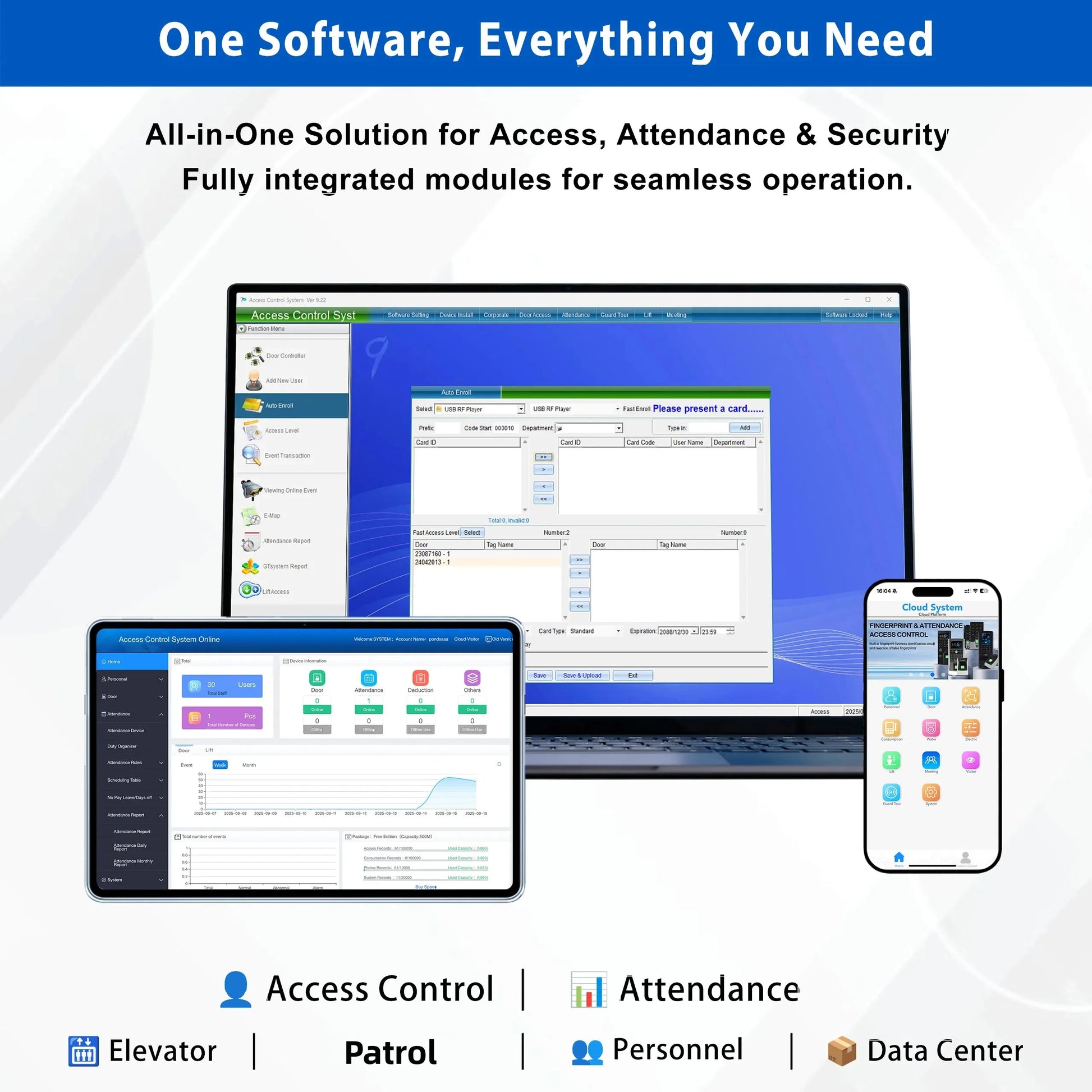

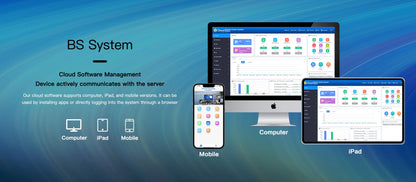

Management Mode: Touch Screen, CS System, BS Cloud System, Mobile App
Material: Metal Casing+Tempered Glass Panel
Model: 8390
Operating System: LINUX system
Origin: Mainland China
Other Interfaces: One Exit Button, One Door Sensor, One Fire Input, One Alarm Output, One Wiegand Output, One Wiegand Input , One Lock Control, One USB, One RS485
Power Source: DC 12V 3A
Power Supply: DC 12V 3A
Recognition Distance: 0.3m-3m(Liveness Detection>1.5m)
Recognition Mode: Face, Palms, Password, Mifare Card, Dual-frequency Card Optional
Record Capacity: 1 Million Records, 10K Photo Records, 10K System Records
Screen Size: Other

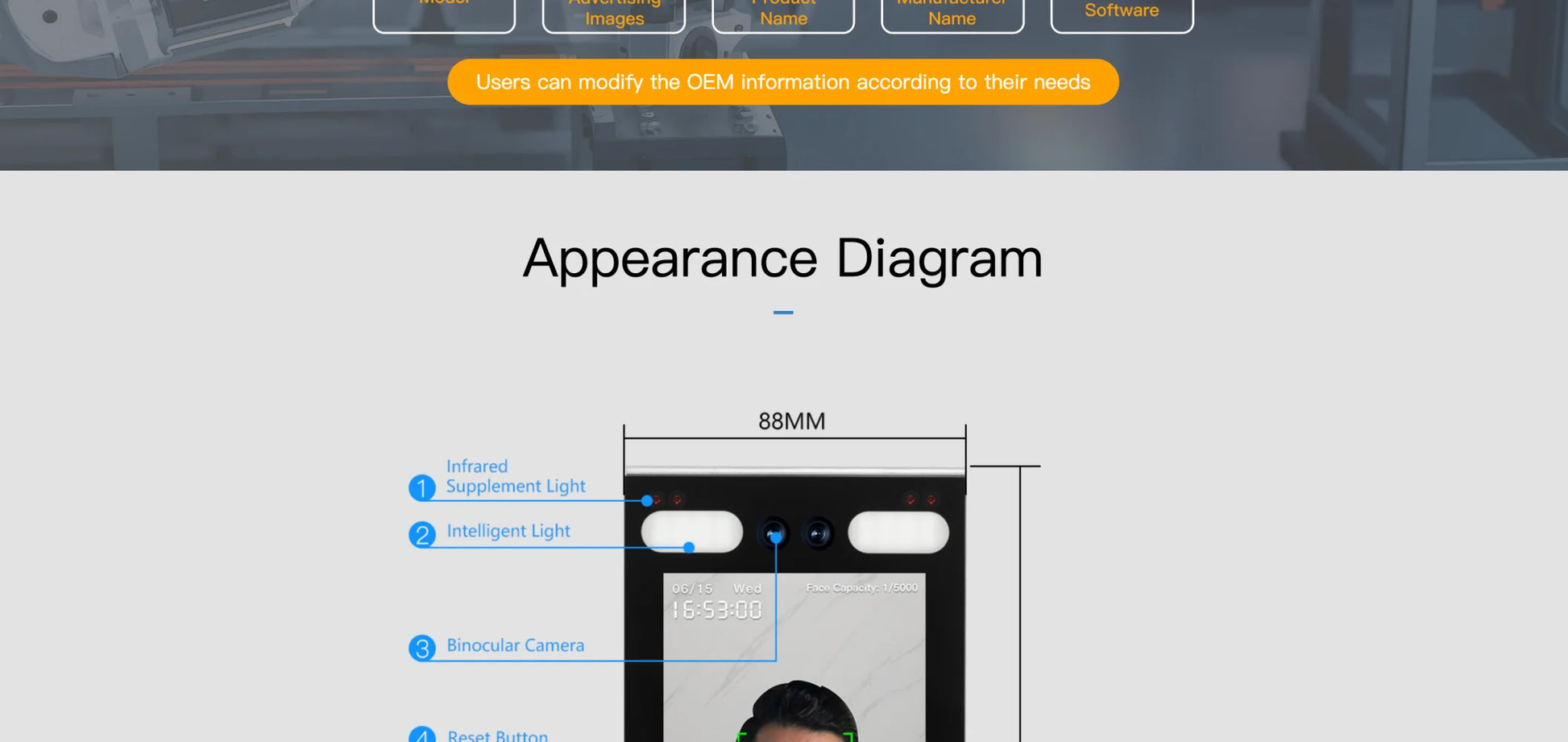

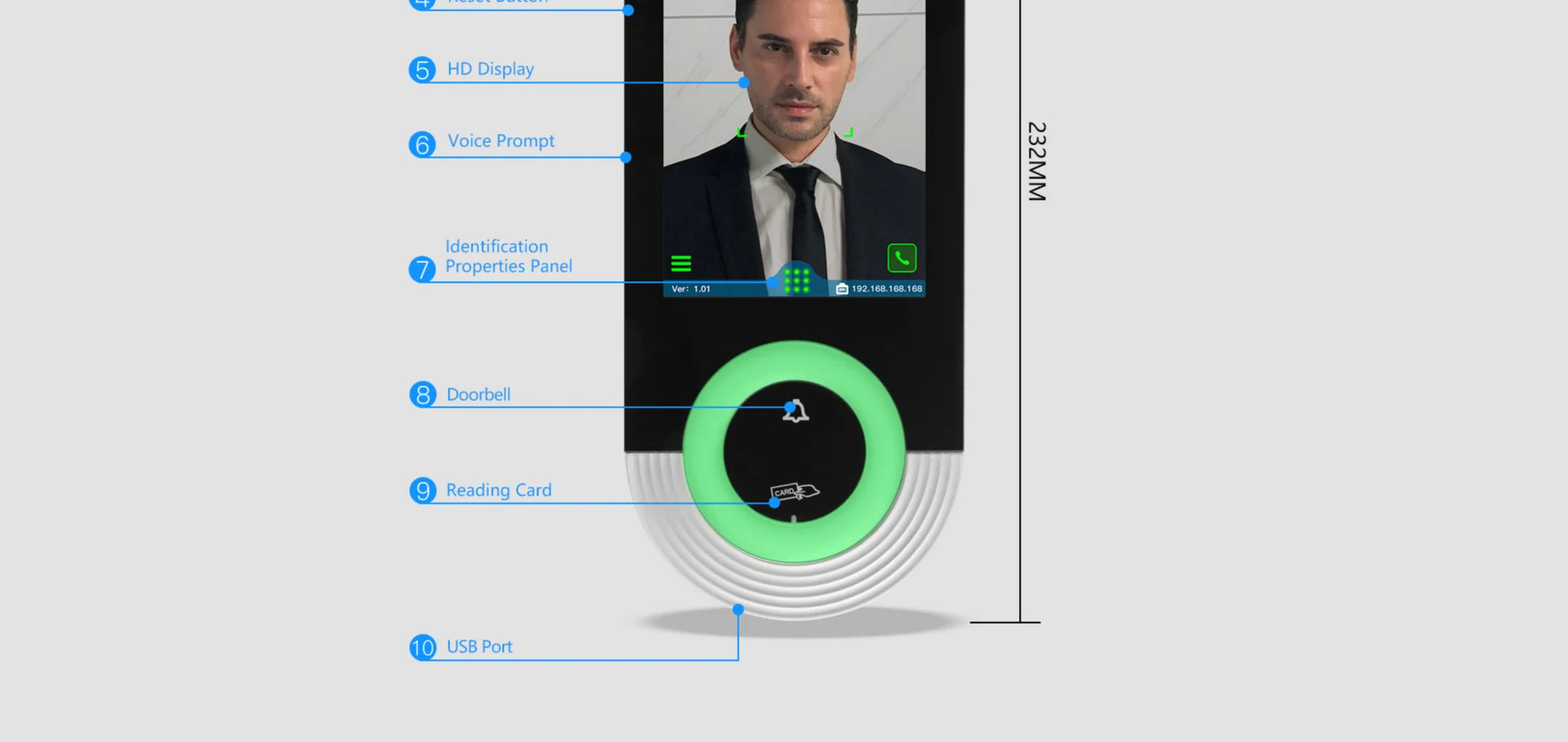

Size: 235*88*25mm
Storage Capacity: 256M DDR3, 8GB EMMC
Used For: Access Control, Time Attendance, Elevator Control, Video Intercom, Cabinet Lock
User Capacity: 5000,20K Users, 20K Faces, 20K QR Codes, 20K Cards, 20K Password, 10K Palms
Weight: 0.7KG
Working Current: <2000mA
Working Temperature: -40°C to 70°C,Temperature: -30 ~ 65℃; Humidity: 10 ~ 90%, Non-condensing
Working Voltage: DC12V
